Version

Professional

Standard

Architecture
Product Picture
Download

download

Version of TRIDENT Trial: 3.0.3.5 (30-day trial version)

Minumum PC Requirement:

● CPU: Intel core i3 or above (For 1~32CH) / Intel core i5 or above (For 32 ~ 64CH)
● RAM: 8GB or above (For 1 ~ 32CH) / 16GB or above (For 32 ~ 64CH)
● Graphics Card: Intel HD4000 or above (For 1 ~ 32CH) / AMD HD7700 or above (For 32 ~ 64CH)
● HDD Drive : at least 500GB space
● Network: Gigabyte Ethernet
● Operating System: Microsoft Windows 7 Professional 64-bit
● Browser: Microsoft Internet Explorer 9 or above* If you couldn’t launch CMS on your PC, please read this.
Product specification AVTECH CMS Professional for all-scale projects managing from 16 to 65535 devices. Global monitoring and control become so easy and efficient with its e-Map configuration, instant event pop-up display, health check and failover mechanism. AVTECH CMS Standard offers a friendly GUI for easy control and management of a 16CH ~ 64CH system.
Client-server Mode Client-server mode available to manage larger system with multiple computers.
Device Search Supports device search of all NVR devices within a local network, and also allows connection to a remote NVR via Internet for off-site management.
Port Forwarding Forwards ports automatically, and finds all the IP cameras under a specific NVR device within a local network. IP cameras can then be easily managed by this software.

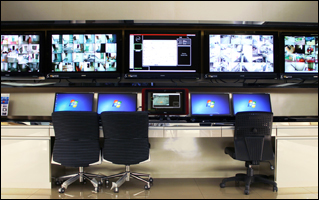

Multiple monitor display Supports up to 8-monitor display and able to define purposes of each monitor Supports up to 4-monitor display and able to define purposes of each monitor.
Live View & Control
Total Live Display CH Number Supports each monitor up to 96CH live display. Supports each monitor up to 64CH live display.
Area Live Display Clicks on a defined group/area on E-map to watch live footage of that area (up to 16 cameras / per area).
Predefined Display Supports 96ch Predefined fixed patent live streaming display. Supports 64ch Predefined fixed patent live streaming display.
Supports sequenced view of grouped cameras. Each group contains up to 16CH and 6 groups can be played in sequence. Dwell time is configurable. -
Supports group view function. Each group contains up to 36CH and unlimited groups can be sequence display. Dwell time is configurable. -
PTZ Control Supports PTZ control via USB mouse and joystick (pan, tilt, zoom, focus, etc)
Digital PTZ Control Supports digital PTZ to examine part of a megapixel image
Hotpoint Control Supports Hotpoint control function for PTZ camera
E-Map
Multi-layered Setup Supports multi-layered maps with camera location on it for intuitive management..
Group Display Cameras can be grouped by area, allowing users to monitor live footage group by group.
Event Notification When an event occurs, the alert indicator shows on the layer of the maps and the camera location on the map.
Graphical Alarm Fence Graphical alarm fence can be displayed to visualize the protected fence by sensors, such as infrared beam detector. When it gets triggered, the alert indicator will show on the map. -
Event Management
Event Pop-up When an event occurs, the event monitor pops up the channel immediately with live display. Up to 4CH event pop-ups are supported. When an event occurs, the event monitor pops up the channel immediately with live display. 1CH event pop-up at a time is supported.
To see event playback with pre-alarm recording, click on the pop-up again. To see event playback with pre-alarm recording, click on the pop-up again.
Camera Management No. Manages up to 65535 cameras. Manages up to 64 cameras.
Audio Alert Supports audio alerts to attract users’ attention to new events.
Alarm Input Allows multiple alarm inputs to trigger PTZ camera move to preset points.
Detection Schedule Scheduled event detection allows event detection to work only within specific period of time device by device.
Playback and Backup
Event Search Searches video files by date and time or by event.
Video Playback Plays video footage for 1 /4 channel. Plays video footage for 1 channel only at a time
Smart Search Smart Search allows users to search motion events in a selected area of a camera image.(This function must work with selected NVR & IP camera models.) -
Detail Check & Snapshot Supports full-screen playback in high resolution and digital PTZ to examine part of a megapixel image, while snapshot is also available anytime during playback.
Footage Conversion Exports audio and video evidence in the “AVI” format, which is compatible with popular video players.
Health Check
Computer Status Shows the status of your PC, such as CPU usage, RAM usage, network upload/download speed, in the control panel for loading check.
Regular Report Detects and reports the system status periodically, such as NVR online/off-line, camera video loss, UPS status, HDD issue (No HDD, Clean HDD, HDD overheat), etc.
Administration
User Account & Privilege Supports unlimited user accounts, selectable user levels and configurable user access rights: Administrator / Power User / User / Guest.
File Export Exports video files from CMS.
Minimum System Requirements
Channel Request Below 96CH (including 96CH) Below 64CH (including 64CH) Below 32CH (including 32CH)
CPU Intel core i7 or above Intel core i5 or above Intel core i3 or above
RAM 32GB or above 16GB or above 8GB or above
Graphics Card GTX660 2G or above AMD HD7700 or above Intel HD4000 or above
Hard Drive Type at least 500GB space
Network Gigabyte Ethernet
Operating System Microsoft Windows 7 Professional 64-bit
Brower Microsoft Internet Explorer 9 or above
