SERVERSCHECK

ServersCheck SensorGateway

Operating temperature range: 0°C to +75°C (+167°F)
Operating humidity range: < 90% rH (non-condensating)
Dimensions: 70 mm (2.7″) x 88 mm (3.4″) x 22 mm (0.8″)
TCP/IP: IPv4 at 10/100 Mbps
Power Source: PoE: IEEE 802.3af
Power Usage: 1500mW (without sensors attached)
Built-in: web server, SNMP v1, v2 & v3 (MD5/AES)
Built-in alerting options: email SMS (over IP) & SNMP Traps
External sensors probes: 2 sensor probes through straight RJ45 cable with max distance of 10m or 30ft
Max distance to switch: depending on cable quality up to 100m / 300ftBuilt-in Temperature Sensor:
Temperature Resolution: 0.1°C / 0.18°F
Temperature Reading: -55°C to +125°C (-67°F to +257°F) / SensorGateway operates up to 75°C
Temperature Accuracy: +/- 1°C (+/- 2°F) over 0°C to +75°C / 32°F to 167°F

Sensorhub for the ServersCheck SensorGateway

Expansion ports for external sensor probes: 8
Dry contact input ports: 4
Dry contact output ports: 2 (digital sink 100mA)
Relay outputs: 2 (400VAC/150VDC and 200VA/192W)
Auxillary supply: maximum current capacity of 500mA at 9 to 12 VDC
Power consumption: 650 milliWatts
Dimensions: 165 mm (6.5″) x 95 mm (3.7″) x 22 mm (0.8″)
Housing: Orange metal casing with one LED status indicators

Wireless Sensors

2 types of sensors: temperature only or temperature + humidity sensors
small form factor making it ideal for dense racks
low maintenance: 1 year battery life
easy installation: magnetic fixture
only 1 IP address required per base unit – hosts up to 30 wireless sensors
Maximum distance between probe and wireless hub is 65ft or 20m

Temperature & Humidity Monitoring Sensor Probe

Temperature Resolution: 0.1°C (0.18)°F precision
Temperature Accuracy: +/- 0.5ºC (+/- 0.9 ºF) over 0ºC to +60ºC
Readings in Celsius or Fahrenheit
Relative Humidity Measurement Range: 0 to 100 % RH
Relative Humidity Resolution or precision: 0.1 % RH and 1 % RH
Relative Humidity Accuracy: +/- 2 % RH between 10 % RH to 90 % RH and +/- 4 % RH below 10 % RH and above 90 % RH
Relative Humidity Long Term Stability: < 1 % RH/year
Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode
Operating humidity range: < 90% rH (non-condensating)
Dimensions: 74 mm (2.9″) x 66 mm (2.59″) x 22 mm (0.8″)
Housing: Orange metal case with status led

External Temperature Monitoring Sensor Probe

Temperature Resolution: 0.1°C (0.18)°F precision
Temperature Accuracy: +/- 0.5ºC (+/- 0.9 ºF) from -10°C to +85°C / 14°F to 185°F
Temperature Reading: -55°C to +125°C (-67ºF to +257ºF)
Readings in Celsius or Fahrenheit
Certified SensorGateway operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode
Operating humidity range: < 90% rH (non-condensating)
Dimensions: 74 mm (2.9″) x 66 mm (2.59″) x 22 mm (0.8″)
Housing: Orange metal case with status led
0U Rack mountable

Power Failure Sensor

Operating temperature range: -40ºC to +75ºC (-40ºF to +167ºF)
Operating humidity range: < 90% rH (non-condensating)
Can detect power failure trough its additional power adapter. 9VDC Power Adapter connected to sensor has to be plugged into the main power outlet (before the UPS)
Provides a ON/OFF indication in Sensorgateway

Water Detection & Flooding Sensor

Water Detection & Flooding Sensor
Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode
Operating humidity range: < 90% rH (non-condensating)

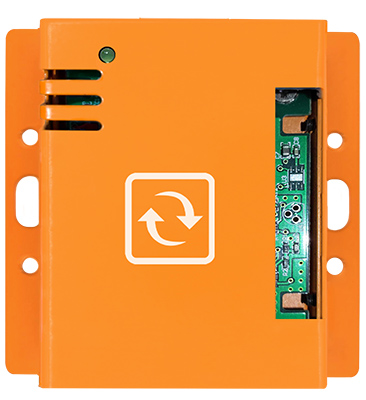

Digital Airflow Sensor Probe

Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode
Operating humidity range: < 90% rH (non-condensating)
Dimensions: 70 mm (2.7″) x 88 mm (3.4″) x 22 mm (0.8″)
Housing: Orange metal casing with one LED status indicators
Digital airflow meter
– Accuracy: 5%
– Air Mass Flow Range: 0m/s to 3m/s (up to 6.7 mph or 10.8 kmh)
– Flow polling rate: min 1 second

Digital Shock / Vibration Sensor Probe

Vibration unit: G force
Minimum value: 1G
Sensor precision:
Dimensions: 74 mm (2.9″) x 66 mm (2.59″) x 22 mm (0.8″)
Housing: Orange metal case with status led
0U Rack mountable
Connects via included 50cm/1.6ft regular RJ45 cable to SensorGateway (up to 10m/33ft supported between probe and SensorGateway)

Digital Sound Metering (db) Sensor Probe

Sound (db) Resolution: 0.1°C (0.18)°F precision
Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode
Operating humidity range: < 90% rH (non-condensating)
Dimensions: 74 mm (2.9″) x 66 mm (2.59″) x 22 mm (0.8″)
Housing: Orange metal case with status led

External Door Contact Security Sensor Probe

Magnetic door contact sensor with self-adhesive or screw mount
Returns OPEN or CLOSE state
0.15″ (0.4m) cable from door contact to probe
Certified SensorGateway operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode
Operating humidity range: < 90% rH (non-condensating)
Dimensions: 74 mm (2.9″) x 66 mm (2.59″) x 22 mm (0.8″)
Housing: Orange metal case with status led
0U Rack mountable

IO – Dry Contact Sensor Probe

Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode
Operating humidity range: < 90% rH (non-condensating)
Dimensions: 70 mm (2.7″) x 88 mm (3.4″) x 22 mm (0.8″)
Housing: Orange metal casing with one LED status indicators
2x 8 dry contact inputs
4 dry contact outputs
12 VDC power out to power attached devices (for example smoke, motion, door sensors) – max 700mA
Contact polling rate: min 1 second

IP65 Stainless Steel Temperature Monitoring Sensor Probe

Temperature Resolution: 0.1°C (0.18)°F precision
Temperature Accuracy: +/- 0.5ºC (+/- 0.9 ºF) from 0°C to +85°C / +/- 1°C for other ranges
Temperature Reading: -55°C to +125°C (-67ºF to +257ºF)
Readings in Celsius or Fahrenheit
Sensor Housing Dimensions: 65 mm (2.5″) x 95 mm (3.74″) x 55 mm (2.16″)
Sensor Housing Material: IP 65 plastic housing
Sensor Housing Colour: light gray
RJ45 cable Gland protection rating: IP 68
Probe dimensions: 18 cm (7″) long with Stainless steel probe with 1.82 m (6 ft.) long, high-temp silicone rubber cable
